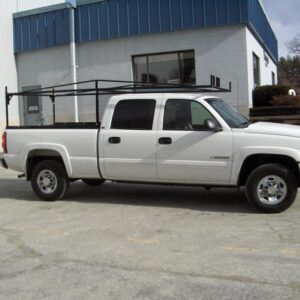

TCR FEATURES:
1. Rear End Bar swings 180 degrees and also locks in place.
2. Torsion bar truss adds strength.
3. Cab over extension is standard.
4. Built-in window protection.
TCR’s Not UPS Acceptable
TRUCK CADDY SPECIFICATIONS:
Steel Tubing: 1.625 O.D. – .090 wall thickness
Angle Iron: 1¾” x 1¾” x 3\16″
Torsion Bar: 1″ x ¼”
Window Screen: Expanded metal screen.
Load Capacity: 1,000 pounds, uniformly distributed.
Color Finish: Black.
NOTE: If you do not see a specific model or year listed in the chart below give us a call at 800-624-5000. We are more than happy to assist you!
Note: Determine which product you need from the table below and then select the corresponding model number from the drop-down menu above. That individual product’s price will be presented in red above. Available with or without front extensions.
Note: Billable weight is 250 lbs.
| MODEL | TRUCK | YEAR | WEIGHT |
| TCR 6799 | Chev. GMC/Longbed – Full Size Silverado, Sierra | 88-2020 | 157 lbs. |
| TCR 6772CC | Chev. GMC/Shortbed – Full Size Silverado, Sierra Crew/Extended Cab (6′ bed) | 88-2018 | 150 lbs. |
| TCR 6780 | Chev. GMC/Shortbed – Full Size Silverado, Sierra (6 1/2 ft. bed) | 88-2020 | 150 lbs. |
| TCR 6770 | Chev. / GMC – Full Size Silverado, Sierra (5.8 Bed) | 2020 | 150 lbs. |
| TCR 6074 | Chev. Colorado/GMC Canyon (6 ft. bed) | 2004-2018 | 136 lbs. |
| TCR 5860 | Chev. Colorado / GMC Canyon (5 ft bed) | 2020 | 130 lbs. |
