Hi-Lo Climbers Model 355 Series
Hi-Lo clibers give true meaning to the term Modular. Modular means complete versatility and flexibility. The efficient design allows the user to assemble a staging system easily into a vast array of configurations that accommodate today’s modern architectural shapes.
Features:

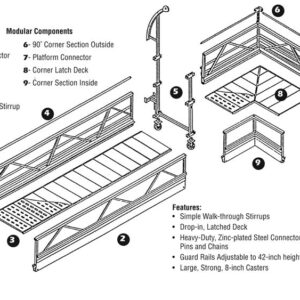

- Sections of 2, 3, 4, 6, 8 and 10-foot allow lengths of up to 40 feet with 1,000 lb. loads. Standard corner sections of 15°, 30°, 45°, 60° and 90° can be assembled to conform to virtually any shape. Cantilever sections extend the overall length to 52 feet.
- Ruggedness, strength and safety result from the custom designed, extra strong extruded aluminum truss that incorporates the toe board.
- Lightweight aluminum knockdown sections are easily transported, set up and stored in a limited floor space. A dismantled 40-foot stage with hoists and accessories can be delivered in a pickup truck.
Note: Determine which product you need from the table below and then select the corresponding model number from the drop-down menu above. That individual product’s price will be presented in red above. For assistance ordering a Hilo Climber Complete Rig, call our customer service team at 1-800-225-2510.
MODEL | DESCRIPTION | WT. |
355-002 | Modular Section | 32 lbs. |
355-003 | Modular Section | 48 lbs. |
355-004 | Modular Section | 62 lbs. |
355-006 | Modular Section | 83 lbs. |
355-008 | Modular Section | 106 lbs. |
355-010 | Modular Section | 136 lbs. |
355-025 | Caster Assembly Complete | 15 lbs. |
355-015 | Corner Section- 15 degrees | 40 lbs. |
355-030 | Corner Section- 30 degrees | 49 lbs. |
355-045 | Corner Section- 45 degrees | 55 lbs. |
355-060 | Corner Section- 60 degrees | 66 lbs. |
355-090 | Corner Section- 90 degrees | 79 lbs. |
355-101 | Platform Connector | 43 lbs. |
355-201 | Stirrup Connector | 55 lbs. |
355-301 | Walk Through Stirrup | 100 lbs. |
355-401 | Platform End | 21 lbs. |
355-500 | Modular Hoist Adaptor | 5 lbs. |
355-501 | Modular Hinge Assembly | 35 lbs. |
355-700 | Walk Through Stirrup Adjuster |
